Articlenumber: DW9651

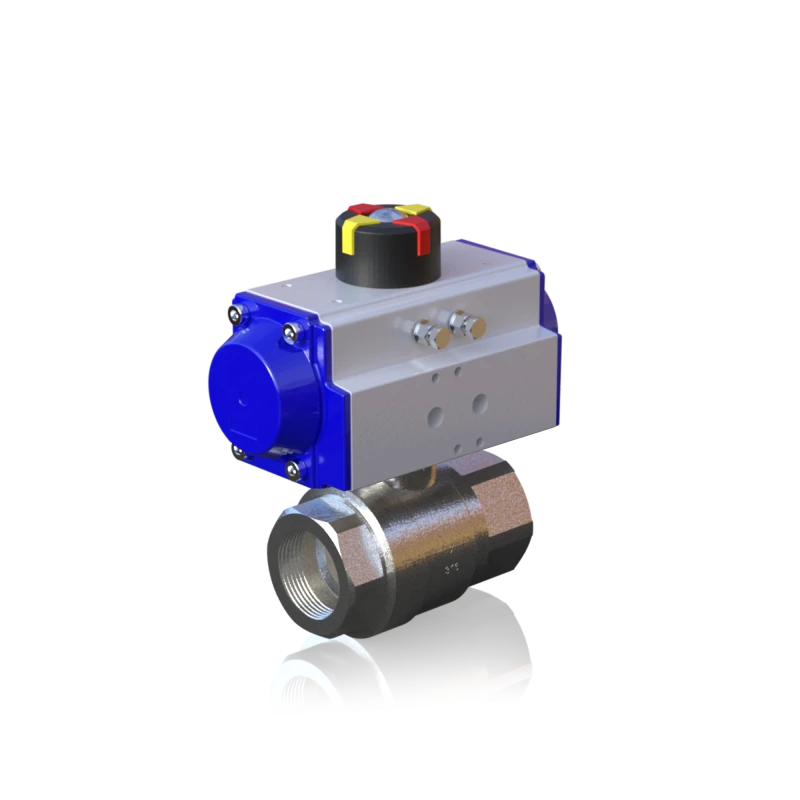

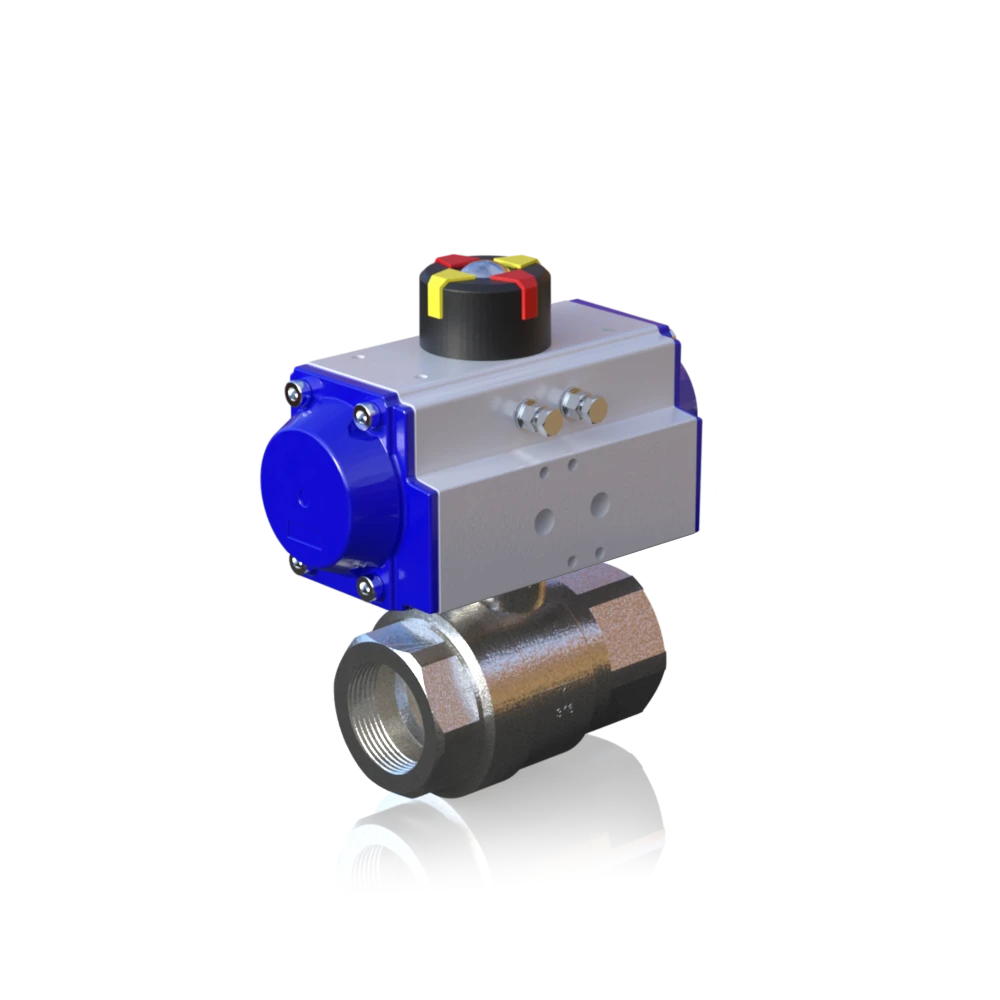

Ball valve stainless steel DVGW drinking water 1/4"-3" IG/IG PN10/63 Pneumatic actuator DW double-acting

Body/Ball/Seal 1.4408/1.4401/ PTFE/EPDM, pneum. actuator DW double-acting, torque 20-110 Nm/control pressure min. 6 bar, SIL

The automation was based on a medium pressure of 10 bar.

Type

Body material

Nominal size

Connection end

Design

Construction

Sealing material

Actuation mode

Approval

Technical data sheet (PDF) WESA Operation Manual Pneumatic Rotary Drive Units FR DW (PDF)
Selection:
Selection
