Articlenumber: DW004872

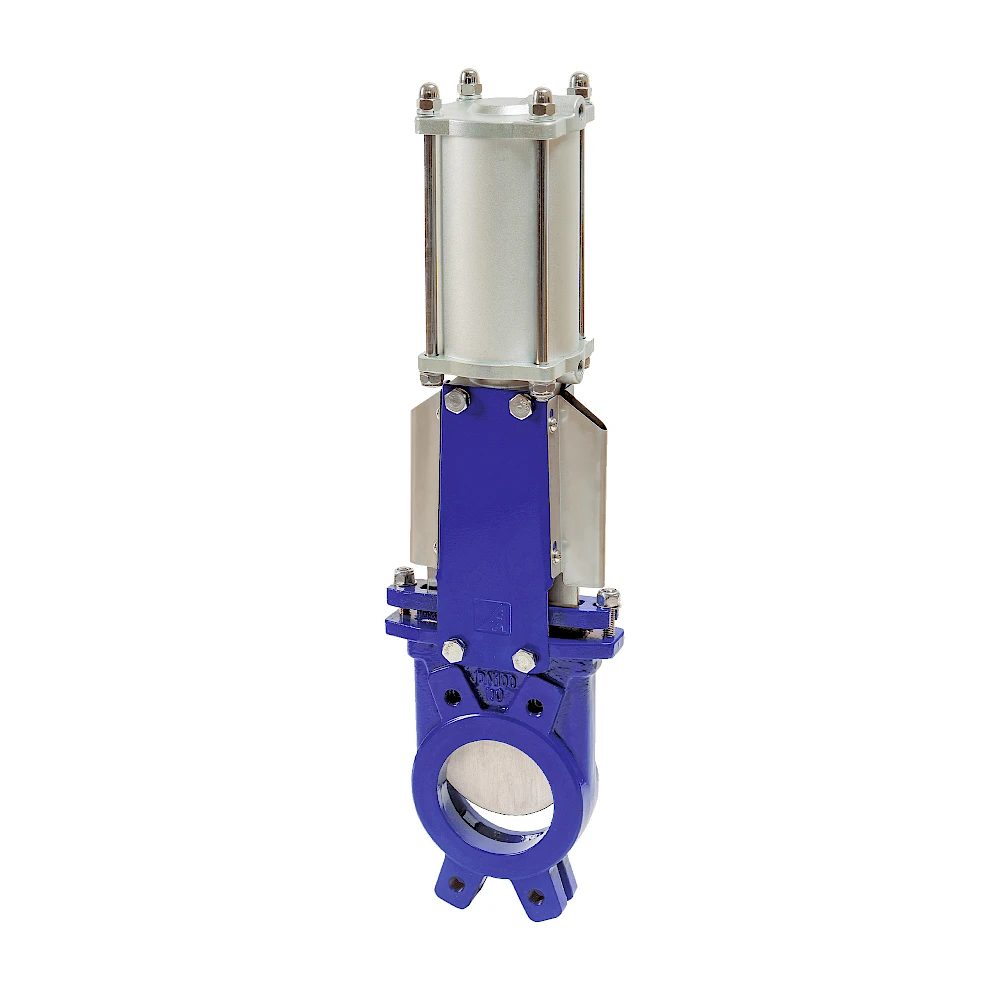

Knife gate valve cast iron DN50-400 PN10 Pneumatic actuator DW double-acting

Body/Knife/Seat GGG40/1.4301/NBR, pneum. actuator DW double-acting, control pressure max. 6 bar, body/cover RAL 5002 blue coated

Type

Knife gate valve

Body material

Spheroid ductile iron

Nominal size

Connection end

Flange

Design

2-piece

Construction

2-way

Sealing material

NBR

Actuation mode

Pneumatic double acting

Technical data sheet (PDF) WESA operating instructions for pneumatic actuators DW FR (PDF) WESA operating instructions for knife-gate valves (PDF)

Selection:

Selection

DW004872-09 - Knife gate valve cast iron DN50 PN10 Pneumatic actuator DW00 double-acting
DW004872-10 - Knife gate valve cast iron DN65 PN10 Pneumatic actuator DW00 double-acting
DW004872-11 - Knife gate valve cast iron DN80 PN10 Pneumatic actuator DW00 double-acting
DW004872-12 - Knife gate valve cast iron DN100 PN10 Pneumatic actuator DW00 double-acting
DW004872-13 - Knife gate valve cast iron DN125 PN10 Pneumatic actuator DW00 double-acting
DW004872-14 - Knife gate valve cast iron DN150 PN10 Pneumatic actuator DW00 double-acting
DW004872-15 - Knife gate valve cast iron DN200 PN10 Pneumatic actuator DW00 double-acting
DW004872-16 - Knife gate valve cast iron DN250 PN10 Pneumatic actuator DW00 double-acting
DW004872-17 - Knife gate valve cast iron DN300 PN10 Pneumatic actuator DW00 double-acting
DW004872-18 - Knife gate valve cast iron DN350 PN10 Pneumatic actuator DW00 double-acting
DW004872-19 - Knife gate valve cast iron DN400 PN10 Pneumatic actuator DW00 double-acting
