Articlenumber: FR0919

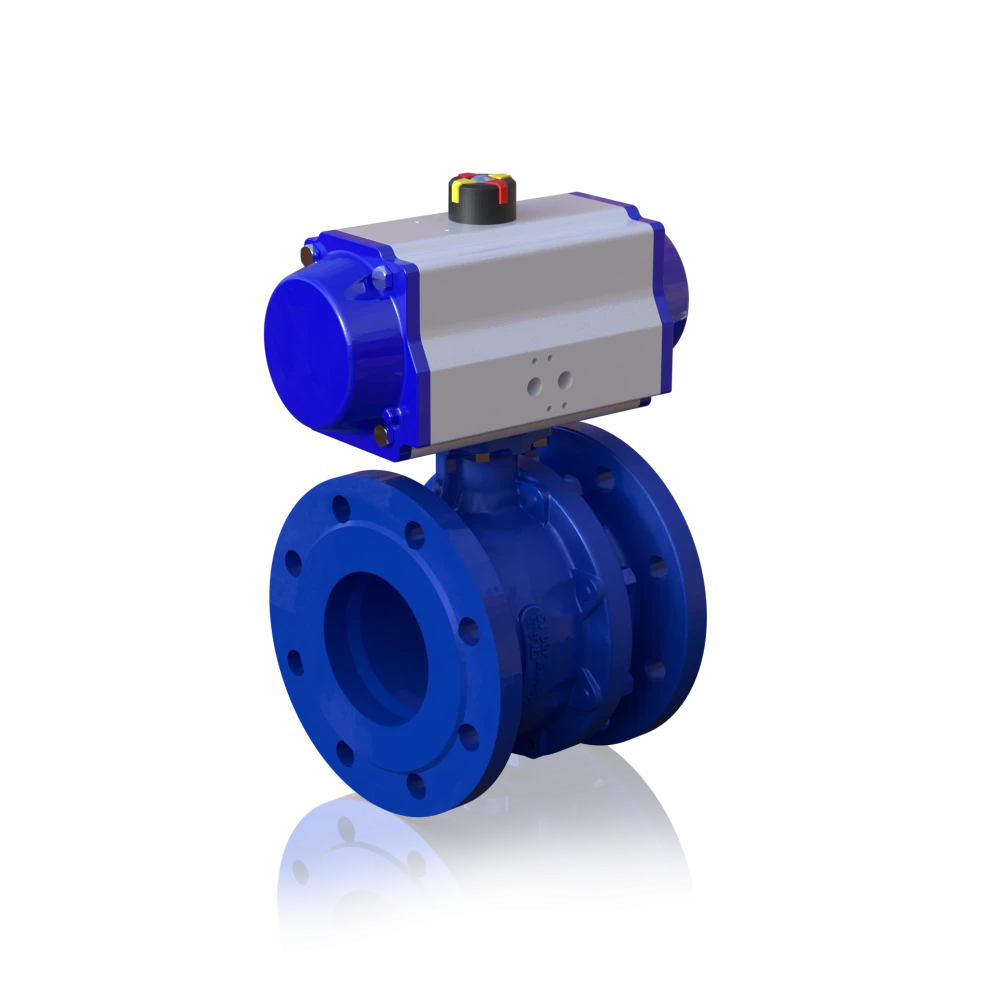

Flange ball valve cast DVGW gas DN20-150 PN16 Pneumatic actuator FR single-acting

Body/Ball/Seal GGG40/CW614N/ PTFE/NBR, pneum. actuator FR single-acting, control pressure min. 6 bar

The automation was based on a medium pressure of 16 bar.

Type

Ball valve

Body material

Spheroid ductile iron

Nominal size

Connection end

Flange

Design

2-piece

Construction

2-way

Sealing material

PTFE

Actuation mode

Pneumatic single acting

Approval

DVGW Gas

Technical data sheet (PDF) WESA Operation Manual Pneumatic Rotary Drive Units FR DW (PDF)

Selection:

Selection

FR030919-05 - Flange ball valve cast DVGW gas DN20 PN16 Pneumatic actuator FR03 single-acting
FR030919-06 - Flange ball valve cast DVGW gas DN25 PN16 Pneumatic actuator FR03 single-acting
FR030919-07 - Flange ball valve cast DVGW gas DN32 PN16 Pneumatic actuator FR03 single-acting
FR030919-08 - Flange ball valve cast DVGW gas DN40 PN16 Pneumatic actuator FR03 single-acting
FR040919-09 - Flange ball valve cast DVGW gas DN50 PN16 Pneumatic actuator FR04 single-acting
FR050919-10 - Flange ball valve cast DVGW gas DN65 PN16 Pneumatic actuator FR05 single-acting
FR060919-11 - Flange ball valve cast DVGW gas DN80 PN16 Pneumatic actuator FR06 single-acting
FR070919-12 - Flange ball valve cast DVGW gas DN100 PN16 Pneumatic actuator FR07 single-acting
FR070919-13 - Flange ball valve cast DVGW gas DN125 PN16 Pneumatic actuator FR07 single-acting
FR080919-14 - Flange ball valve cast DVGW gas DN150 PN16 Pneumatic actuator FR08 single-acting
