Articlenumber: AE9768

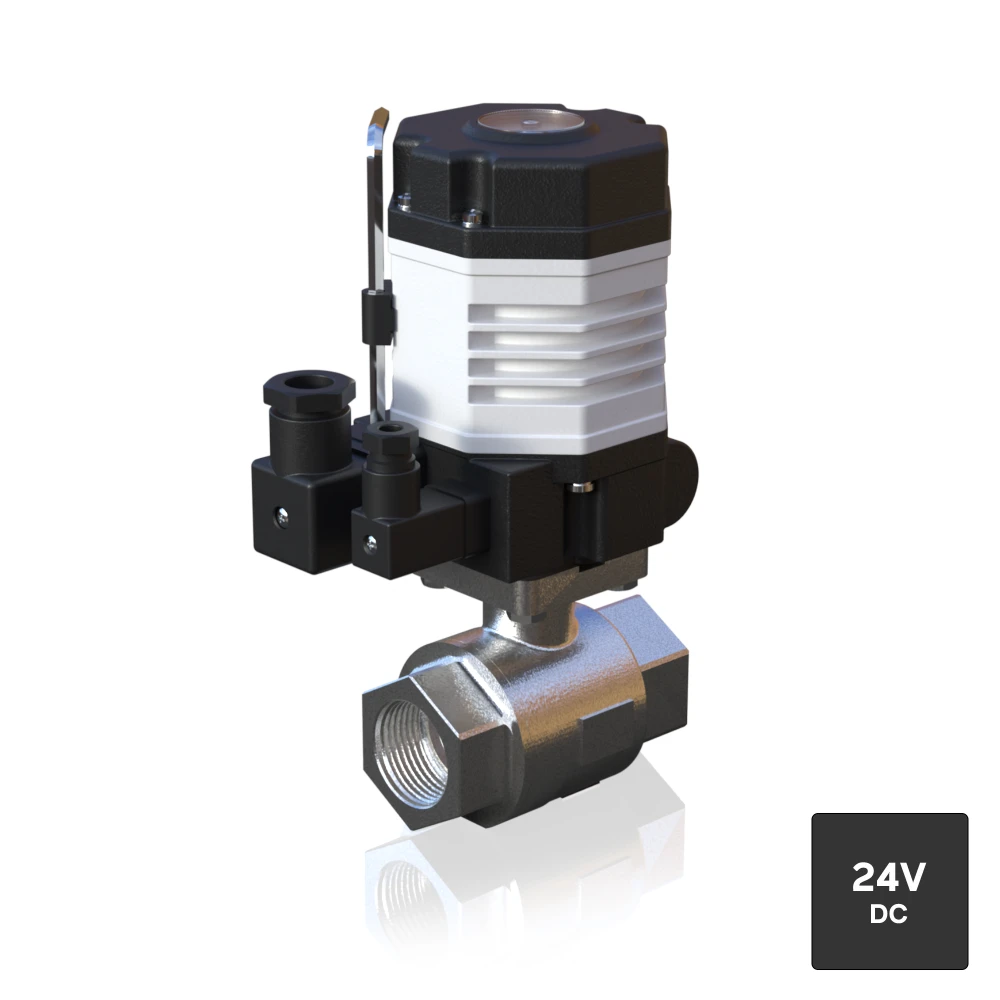

High-pressure ball valve stainless steel 1/4"-3" FE/FE PN64-140 Electric actuator AE 24V DC

Body/Ball/Seal 1.4401/1.4401/ PTFE/FKM, electric actuator AE 24V DC, torque 18-200 Nm positioning time 10-30 sec. 90°

Type

Ball valve

Body material

Stainless steel

Nominal size

Connection end

FE x FE

Design

2-piece

Construction

2-way

Sealing material

R-PTFE

Actuation mode

Electrically

Technical data sheet AE01-02 (PDF) Technical data sheet AE04-12 (PDF) WESA Operating Instructions Electric Actuators AE01-03 (PDF) WESA Operating Instructions Electric Actuators AE04-19 (PDF)

Selection:

Selection

AE029768-02 - High-pressure ball valve stainless steel 1/4" FE/FE PN140 Electric actuator AE02 24V DC
AE029768-03 - High-pressure ball valve stainless steel 3/8" FE/FE PN140 Electric actuator AE02 24V DC
AE029768-04 - High-pressure ball valve stainless steel 1/2" FE/FE PN140 Electric actuator AE02 24V DC
AE029768-05 - High-pressure ball valve stainless steel 3/4" FE/FE PN140 Electric actuator AE02 24V DC
AE059768-06 - High-pressure ball valve stainless steel 1" FE/FE PN140 Electric actuator AE05 24V DC
AE059768-07 - High-pressure ball valve stainless steel 1 1/4" FE/FE PN100 Electric actuator AE05 24V DC
AE079768-08 - High-pressure ball valve stainless steel 1 1/2" FE/FE PN100 Electric actuator AE07 24V DC
AE109768-09 - High-pressure ball valve stainless steel 2" FE/FE PN100 Electric actuator AE10 24V DC
AE129768-10 - High-pressure ball valve stainless steel 2 1/2" FE/FE PN64 Electric actuator AE12 24V DC
AE129768-11 - High-pressure ball valve stainless steel 3" FE/FE PN64 Electric actuator AE12 24V DC
