Articlenumber: AE9651

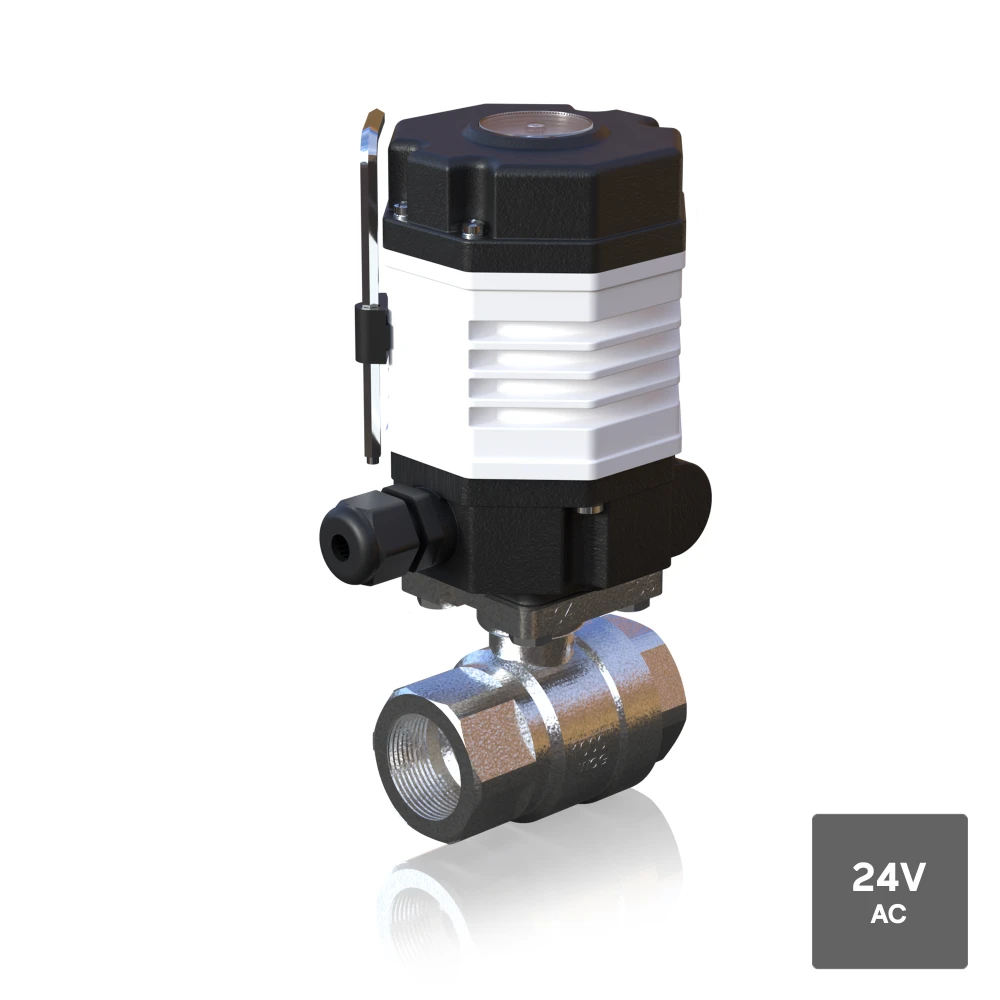

Ball valve stainless steel DVGW drinking water 1/4"-1" IG/IG PN10/63 Electric actuator AE03 24V AC

Body/Ball/Seal 1.4408/1.4401/PTFE/EPDM, electric actuator AE03 24V AC, torque 18 Nm positioning time 15 sec. 90°

The automation was based on a medium pressure of 10 bar.

Further information on request.

Type

Body material

Nominal size

Connection end

Design

Construction

Sealing material

Actuation mode

Approval

WESA Operating Instructions Electric Actuators TYPE AE01-03 (PDF)
