Articlenumber: AE9338

3-way ball valve stainless steel *L* 1/4"-2" 3xFE PN63 Electric actuator AE 230V AC

Body/Ball/Seal 1.4408/1.4401/ R-PTFE/PTFE/FKM, electric actuator AE 230V AC, torque 18-100 Nm positioning time 12-30 sec. 90°

The automation was based on a medium pressure of 16 bar.
Higher pressures on request.

Type

Body material

Nominal size

Connection end

Design

Construction

Sealing material

Actuation mode

Technical data sheet AE01-02 (PDF) Technical data sheet AE04-12 (PDF) WESA Operating Instructions Electric Actuators AE01-03 (PDF) WESA Operating Instructions Electric Actuators AE04-19 (PDF)
Selection:
Selection

Further products

Articlenumber: AE9651

Ball valve stainless steel DVGW drinking water 1/4"-3" FE/FE PN10...

Body/Ball/Seal 1.4408/1.4401/PTFE/EPDM, electric actuator AE 230V AC, torque 18-100 Nm positioning time 15-30 sec. 90°

Articlenumber: AE9651

Ball valve stainless steel DVGW drinking water 1/4"-3" FE/FE PN10...

Body/Ball/Seal 1.4408/1.4401/PTFE/EPDM, electric actuator AE 24V DC, torque 18-100 Nm positioning time 10-30 sec. 90°

Articlenumber: AE9651

Ball valve stainless steel DVGW drinking water 1/4"-1" IG/IG PN10...

Body/Ball/Seal 1.4408/1.4401/PTFE/EPDM, electric actuator AE03 24V AC, torque 18 Nm positioning time 15 sec. 90°

Articlenumber: AE0768

Ball valve brass 1/2"-2" FE/FE PN25-40 Electric actuator AE 230V ...

Body/Ball/Seal CW617N/CW617N/ PTFE/FKM, electric actuator AE 230V AC

Articlenumber: AE0768

Ball valve brass 1/2"-2" FE/FE PN25-40 Electric actuator AE 24V D...

Body/Ball/Seal CW617N/CW617N/ PTFE/FKM, electric actuator AE 24V DC

Articlenumber: AE0768

Ball valve brass 1/2"-1 1/4" FE/FE PN25-40 Electric actuator AE03...

Body/Ball/Seal CW617N/CW617N/ PTFE/FKM, electric actuator AE03 24V AC, torque 18 Nm positioning time 10 sec. 90°

Articlenumber: AE0852

Ball valve brass DVGW drinking water 3/8"-2" FE/FE PN10 Electric ...

Body/Ball/Seal CW617N/CW617N/PTFE, electric actuator AE 230V AC

Articlenumber: AE0852

Ball valve brass DVGW drinking water 3/8"-2" FE/FE PN10 Electric ...

Body/Ball/Seal CW617N/CW617N/PTFE, electric actuator AE 24V DC

Articlenumber: AE0852

Ball valve brass DVGW drinking water 3/8"-1" FE/FE PN10 Electric ...

Body/Ball/Seal CW617N/CW617N/PTFE, electric actuator AE03 24V AC, torque 18 Nm positioning time 10 sec. 90°

Articlenumber: SFR20852

Ball valve brass DVGW drinking water 3/8"-2" FE/FE PN10 Electric ...

Body/Ball/Seal CW617N/CW617N/PTFE, electric actuator SFR2 24-230V AC/24-125V DC

Articlenumber: AE0909

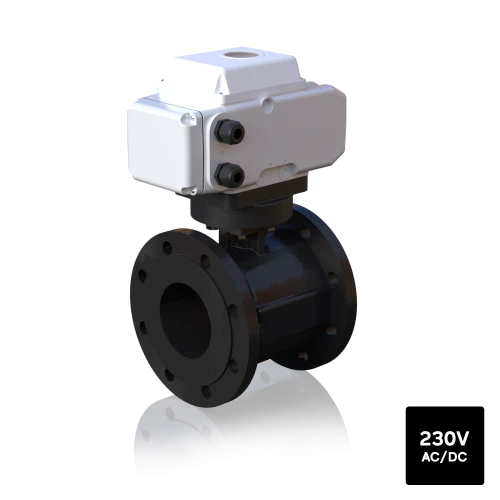

Flange ball valve GG25 DN25-150 PN16 Electric actuator AE 230V AC

Body/Ball/Seal GG25/CW608N/ PTFE/HNBR, electric actuator AE 230V AC, torque 30-200 Nm positioning time 12-30 sec. 90°

Articlenumber: AE0909

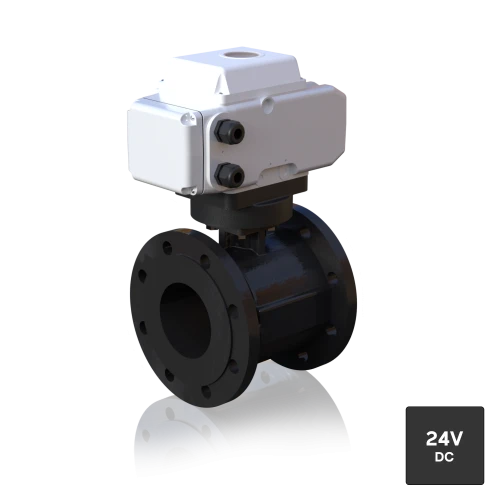

Flange ball valve GG25 DN25-150 PN16 Electric actuator AE 24V DC
