Articlenumber: AE0920

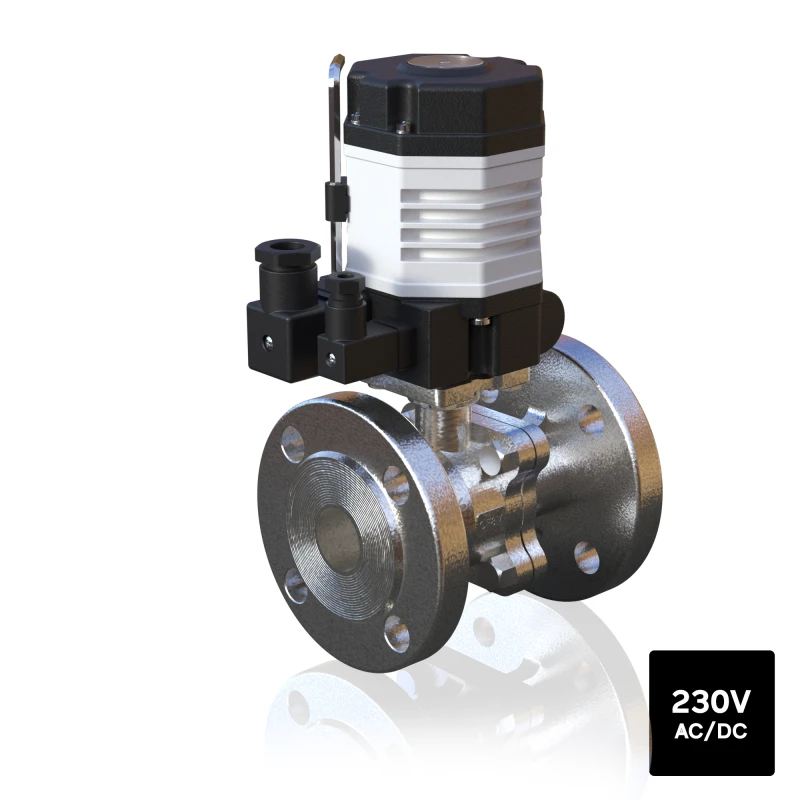

Flange ball valve stainless steel DN15-100 PN16-40 Electric actuator AE 230V AC

Body/Ball/Seal 1.4408/1.4401/R-PTFE/FKM, electric actuator AE 230V AC, torque 18-200 Nm positioning time 15-30 sec. 90°

The automation was based on a medium pressure of 16 bar.
Higher pressures on request.

Type

Body material

Nominal size

Connection end

Design

Construction

Sealing material

Actuation mode

Technical data sheet AE01-AE02 (PDF) Technical data sheet AE04-AE14 (PDF) WESA Operating Instructions Electric Actuators AE01-03 (PDF) WESA Operating Instructions Electric Actuators AE04-19 (PDF)
Selection:
Selection
