Articlenumber: AE0919

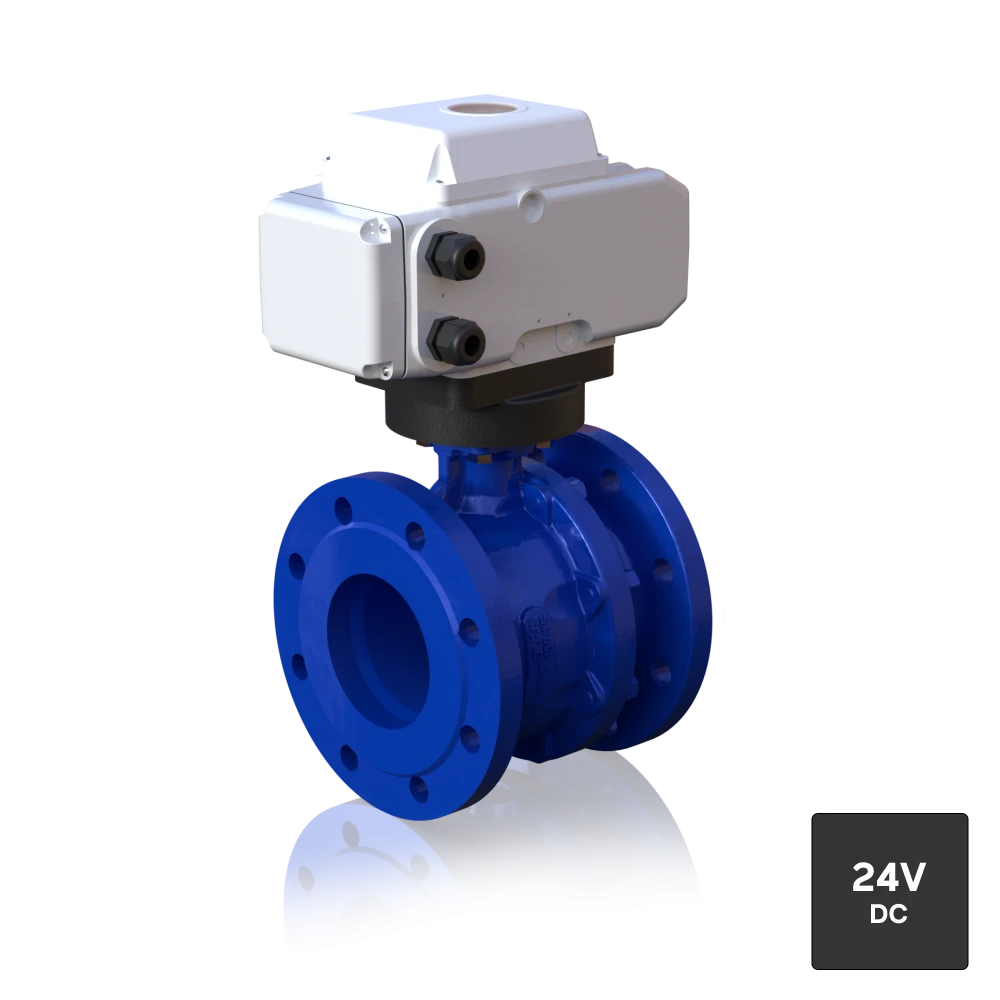

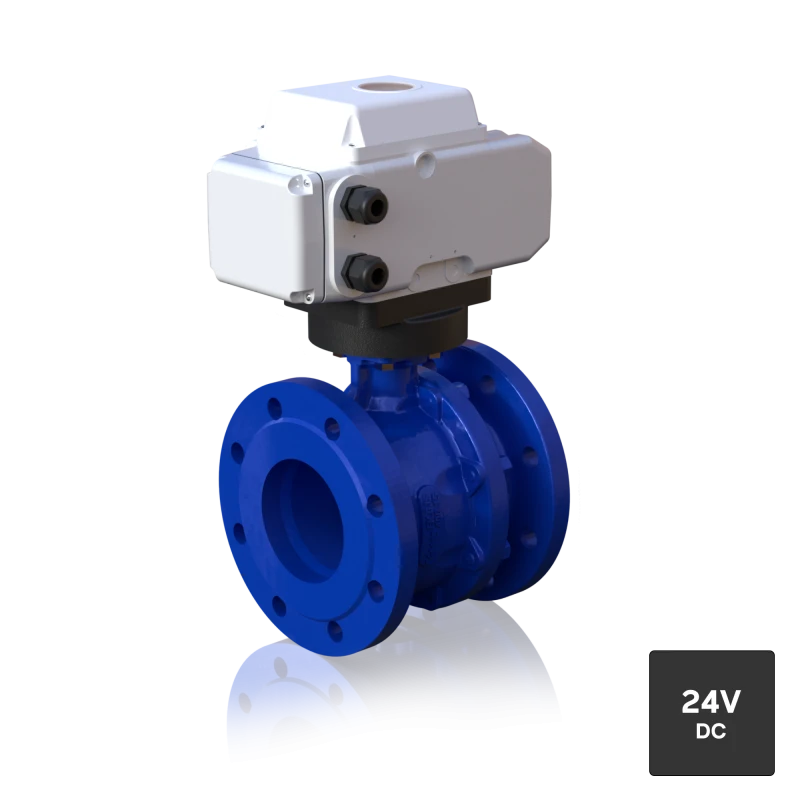

Flange ball valve spheroid ductile iron GGG40 DVGW Gas DN20-150 PN16 Electric actuator AE 24V DC

Body/Ball/Seal GGG40/CW614N/ PTFE/NBR, electric actuator AE 24V DC, torque 30-400 Nm positioning time 12-30 sec. 90°

Type

Ball valve

Body material

Spheroid ductile iron

Nominal size

Connection end

Flange

Design

2-piece

Construction

2-way

Sealing material

Actuation mode

Electrically

Approval

DVGW Gas

Technical data sheet (PDF) WESA Operating Instructions Electric Actuators AE04-19 (PDF)

Selection:

Selection

AE050919-05 - Flange ball valve spheroid ductile iron GGG40 DVGW Gas DN20 PN16 Electric actuator AE05 24V DC
AE050919-06 - Flange ball valve spheroid ductile iron GGG40 DVGW Gas DN25 PN16 Electric actuator AE05 24V DC
AE050919-07 - Flange ball valve spheroid ductile iron GGG40 DVGW Gas DN32 PN16 Electric actuator AE05 24V DC
AE050919-08 - Flange ball valve spheroid ductile iron GGG40 DVGW Gas DN40 PN16 Electric actuator AE05 24V DC
AE050919-09 - Flange ball valve spheroid ductile iron GGG40 DVGW Gas DN50 PN16 Electric actuator AE05 24V DC
AE070919-10 - Flange ball valve spheroid ductile iron GGG40 DVGW Gas DN65 PN16 Electric actuator AE07 24V DC
AE100919-11 - Flange ball valve spheroid ductile iron GGG40 DVGW Gas DN80 PN16 Electric actuator AE10 24V DC
AE120919-12 - Flange ball valve spheroid ductile iron GGG40 DVGW Gas DN100 PN16 Electric actuator AE12 24V DC
AE140919-13 - Flange ball valve spheroid ductile iron GGG40 DVGW Gas DN125 PN16 Electric actuator AE14 24V DC
AE140919-14 - Flange ball valve spheroid ductile iron GGG40 DVGW Gas DN150 PN16 Electric actuator AE14 24V DC
