Articlenumber: AE9652

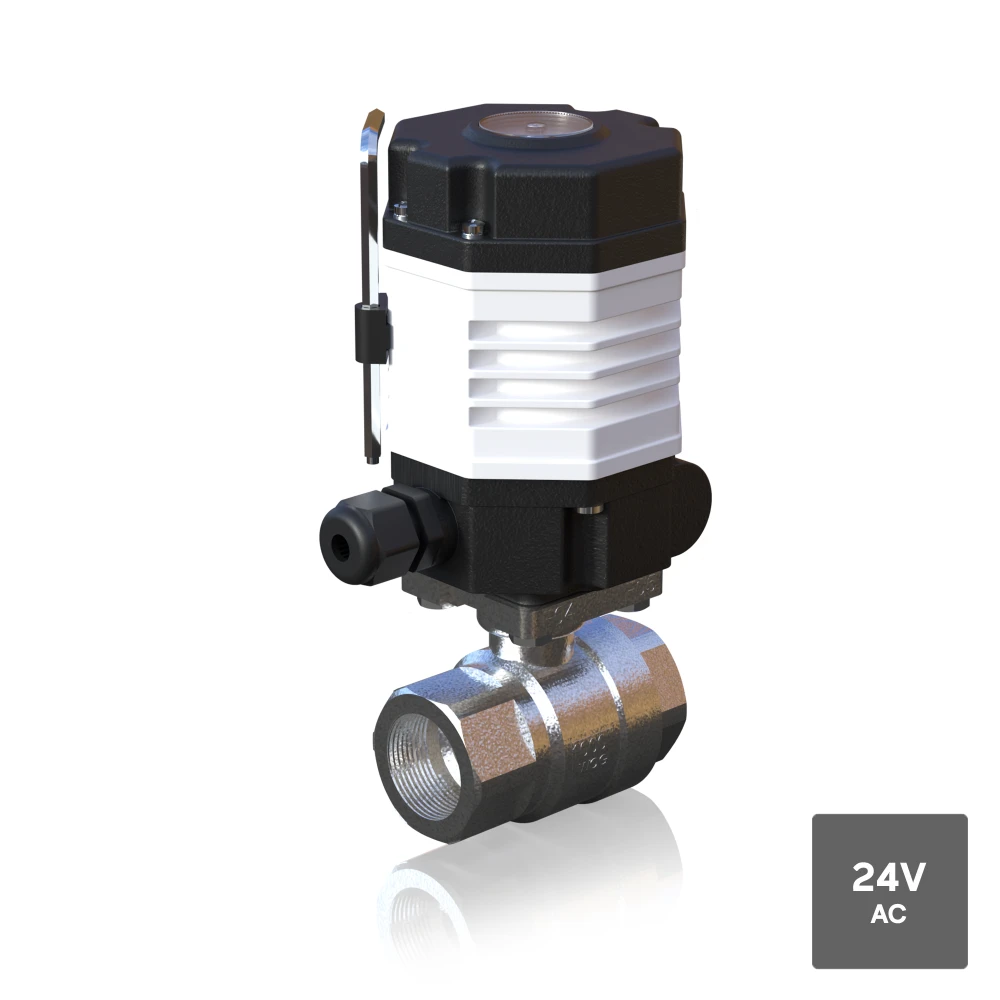

Ball valve stainless steel 1/4"-3" FE/FE PN63 Electric actuator AE 24V AC

Body/Ball/Seal 1.4408/1.4401/R-PTFE/PTFE/FKM, electric actuator AE 24V AC

The automation was based on a medium pressure of 16 bar.

Further information on request.

Type

Body material

Nominal size

Connection end

Design

Construction

Sealing material

Actuation mode

WESA Operating Instructions Electric Actuators AE01-03 (PDF)
