Articlenumber: AE099768-09

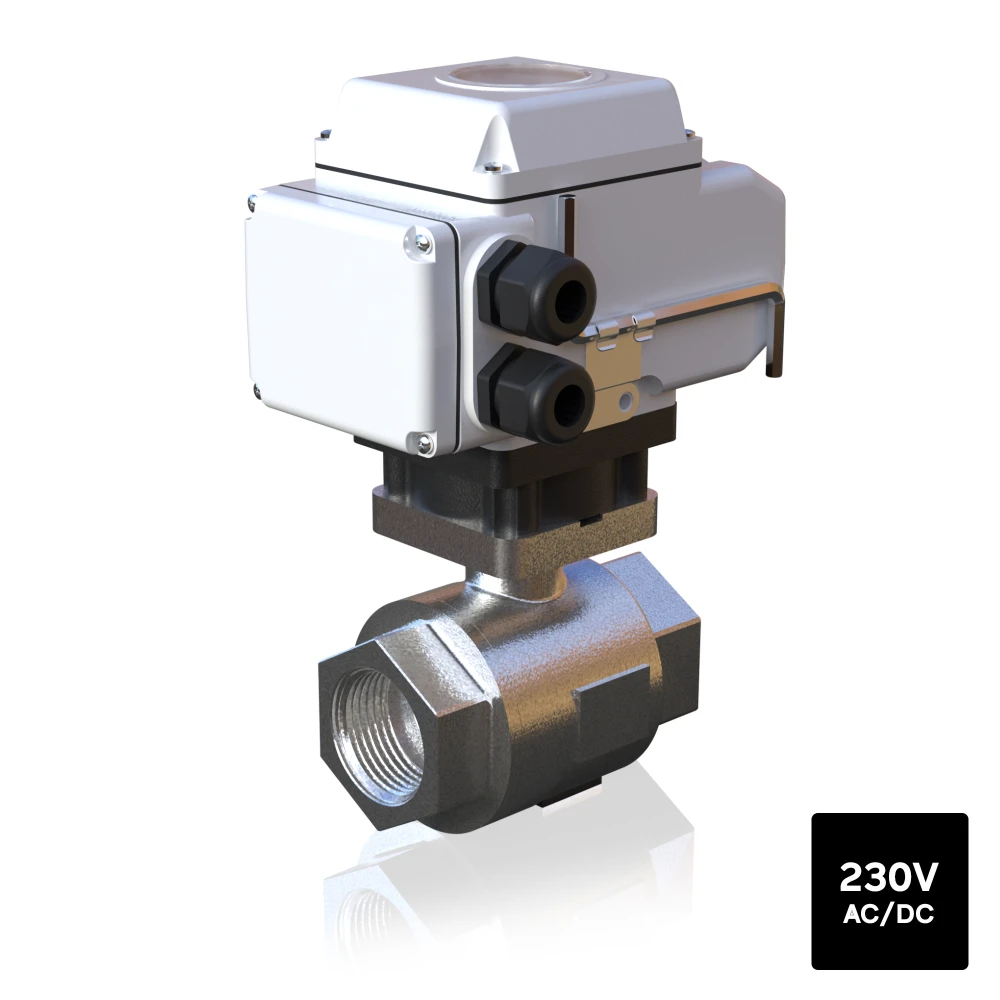

High-pressure ball valve stainless steel 2" FE/FE PN100 Electric actuator AE06 230V AC

Body/Ball/Seal 1.4401/1.4401/ PTFE/FKM, electric actuator AE09 230V AC, torque 100 Nm positioning time 30 sec. 90°

Type

Ball valve

Body material

Stainless steel

Nominal size

2" (DN50)

Connection end

FE x FE

Design

2-piece

Construction

2-way

Sealing material

R-PTFE

Actuation mode

Electrically

Technical data sheet AE01-02 (PDF) Technical data sheet AE04-12 (PDF) WESA Operating Instructions Electric Actuators AE01-03 (PDF) WESA Operating Instructions Electric Actuators AE04-19 (PDF)

Selection:

Selection

AE019768-02 - High-pressure ball valve stainless steel 1/4" FE/FE PN140 Electric actuator AE01 230V AC
AE019768-03 - High-pressure ball valve stainless steel 3/8" FE/FE PN140 Electric actuator AE01 230V AC
AE019768-04 - High-pressure ball valve stainless steel 1/2" FE/FE PN140 Electric actuator AE01 230V AC
AE019768-05 - High-pressure ball valve stainless steel 3/4" FE/FE PN140 Electric actuator AE01 230V AC
AE049768-06 - High-pressure ball valve stainless steel 1" FE/FE PN140 Electric actuator AE04 230V AC
AE049768-07 - High-pressure ball valve stainless steel 1 1/4" FE/FE PN100 Electric actuator AE04 230V AC
AE069768-08 - High-pressure ball valve stainless steel 1 1/2" FE/FE PN100 Electric actuator AE06 230V AC
AE099768-09 - High-pressure ball valve stainless steel 2" FE/FE PN100 Electric actuator AE06 230V AC
AE119768-10 - High-pressure ball valve stainless steel 2 1/2" FE/FE PN64 Electric actuator AE11 230V AC
AE119768-11 - High-pressure ball valve stainless steel 3" FE/FE PN64 Electric actuator AE11 230V AC
