Articlenumber: AE5221

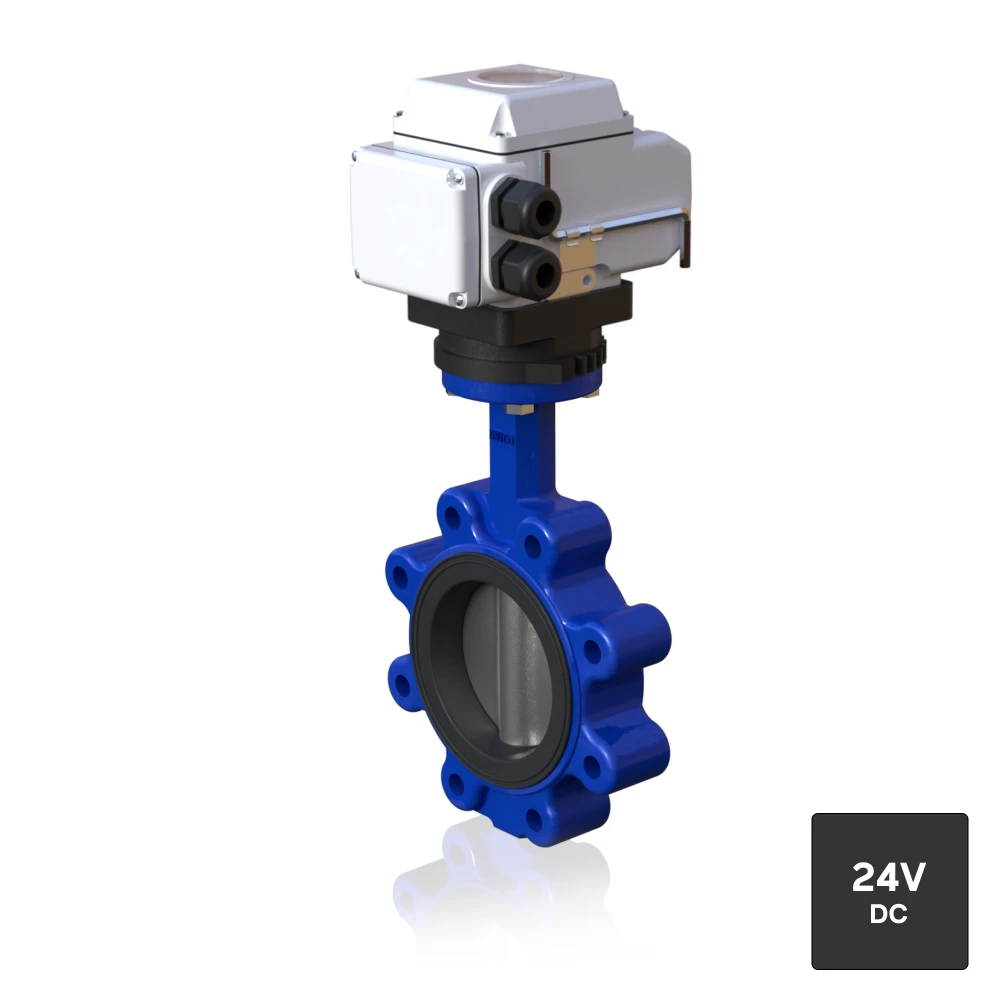

Butterfly valve LUG cast iron DN200-300 PN10 Electric actuator AE 24V DC

Body/Disc/Seat GGG40/1.4408/ FKM, electric actuator AE 24V DC, torque 200-600 Nm Actuating time 30-45 sec. 90°

The automation was based on a medium pressure of 16 bar.

Further information on request.

Type

Butterfly valve

Body material

Spheroid ductile iron

Nominal size

Connection end

LUG

Design

1-piece

Construction

2-way

Sealing material

FKM

Actuation mode

Electrically

Technical data sheet (PDF) WESA Operating Instructions Electric Actuators AE04-19 (PDF) Operating instructions for butterfly valves type WAFER / LUG (PDF)

Selection:

Selection

AE125221-15 - Butterfly valve LUG cast iron DN200 PN10 Electric actuator AE12 24V DC
AE145221-16 - Butterfly valve LUG cast iron DN250 PN10 Electric actuator AE14 24V DC
AE165221-17 - Butterfly valve LUG cast iron DN300 PN10 Electric actuator AE16 24V DC
