Articlenumber: AE059343-06

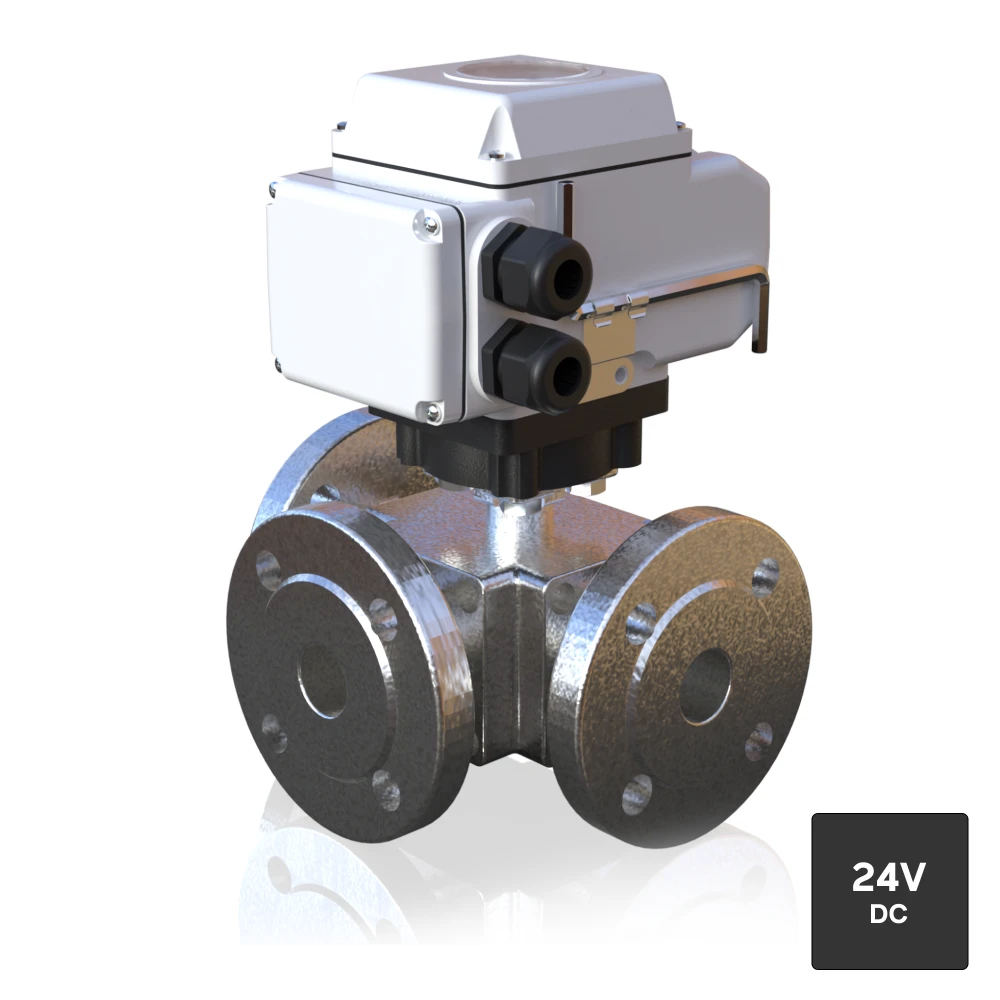

3-way ball valve stainless steel *L* DN25 3xflange PN40 Electric actuator AE05 24V DC

Body/Ball/Seal 1.4408/1.4401/ R-PTFE/PTFE/FKM, electric actuator AE05 24V DC, torque 30 Nm positioning time 12 sec. 90°

The automation was based on a medium pressure of 16 bar.

Type

Body material

Nominal size

Connection end

Design

Construction

Sealing material

Actuation mode

3D-Model (STP) 3D-Ansicht
Technical data sheet AE01-02 (PDF) Technical data sheet (PDF) WESA Operating Instructions Electric Actuators AE01-03 (PDF) WESA Operating Instructions Electric Actuators AE04-19 (PDF)
Selection:
Selection
