Articlenumber: AE105400-12

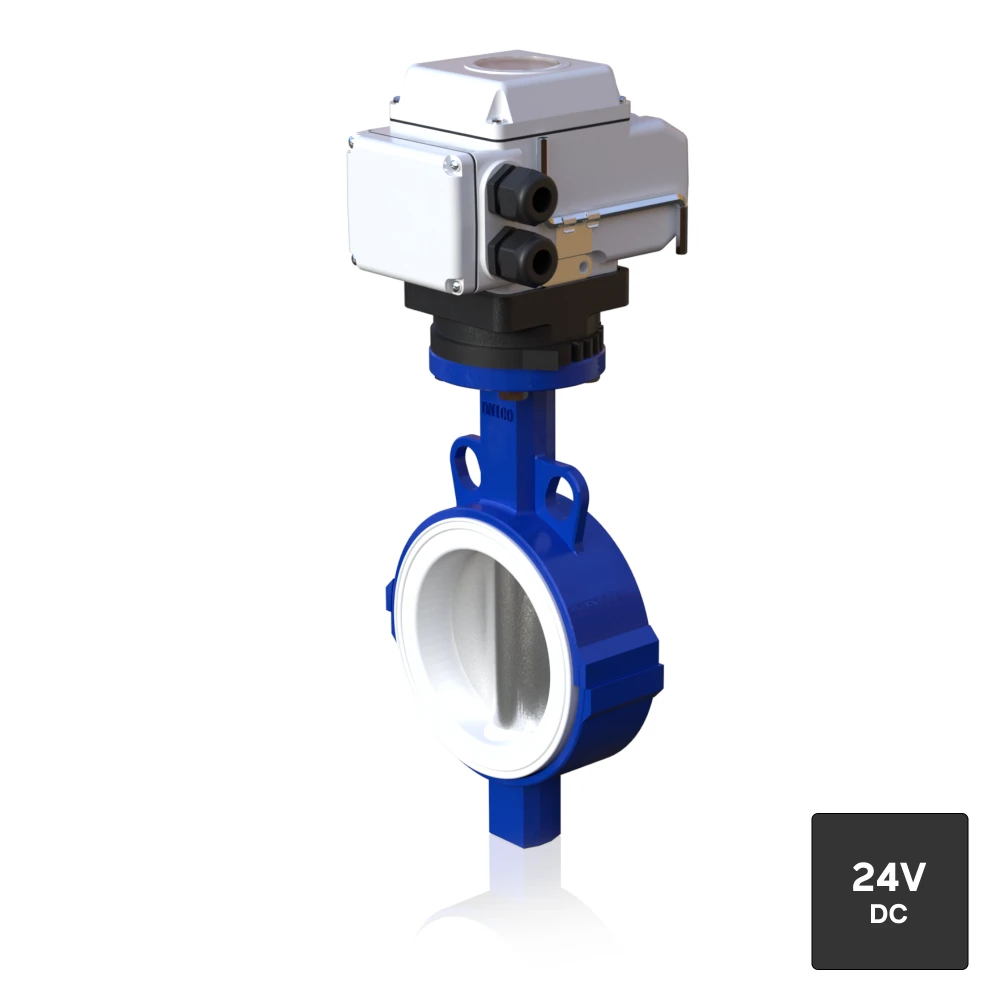

Butterfly valve WAFER cast iron DN100 PN16 Electric actuator AE10 24V DC

Body/Disc/Seal GGG40/1.4408/ PTFE, electric actuator AE10 24V DC, torque 100 Nm positioning time 30 sec. 90°

The automation was based on a medium pressure of 16 bar.

Type

Butterfly valve

Body material

Spheroid ductile iron

Nominal size

4" (DN100)

Connection end

WAFER

Design

2-piece

Construction

2-way

Sealing material

PTFE

Actuation mode

Electrically

3D-Model (STP) 3D-Ansicht

Technical data sheet (PDF) WESA Operating Instructions Electric Actuators AE04-19 (PDF) Operating instructions for butterfly valves type WAFER / LUG (PDF)

Selection:

Selection

AE075400-08 - Butterfly valve WAFER cast iron DN40 PN16 Electric actuator AE07 24V DC
AE075400-09 - Butterfly valve WAFER cast iron DN50 PN16 Electric actuator AE07 24V DC
AE075400-10 - Butterfly valve WAFER cast iron DN65 PN16 Electric actuator AE07 24V DC
AE105400-11 - Butterfly valve WAFER cast iron DN80 PN16 Electric actuator AE10 24V DC
AE105400-12 - Butterfly valve WAFER cast iron DN100 PN16 Electric actuator AE10 24V DC
AE125400-13 - Butterfly valve WAFER cast iron DN125 PN16 Electric actuator AE12 24V DC
AE125400-14 - Butterfly valve WAFER cast iron DN150 PN16 Electric actuator AE12 24V DC
