Articlenumber: AE5120

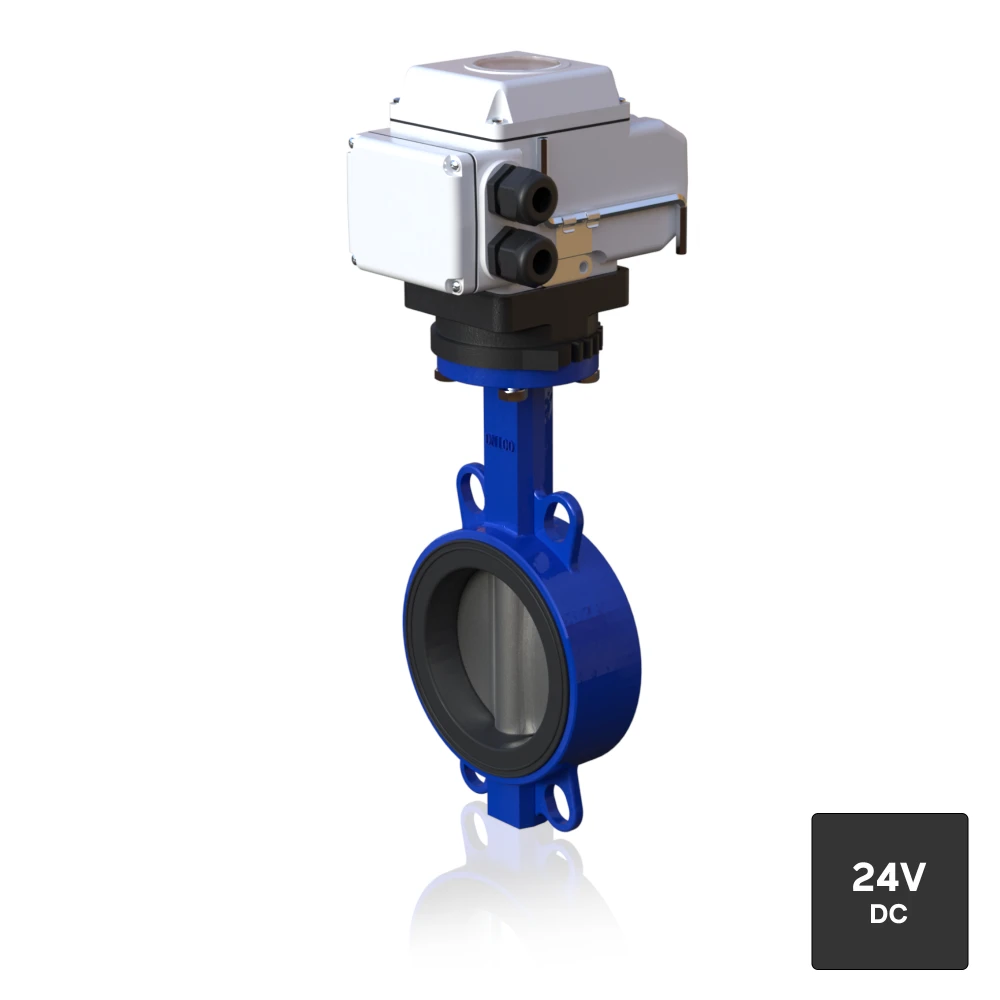

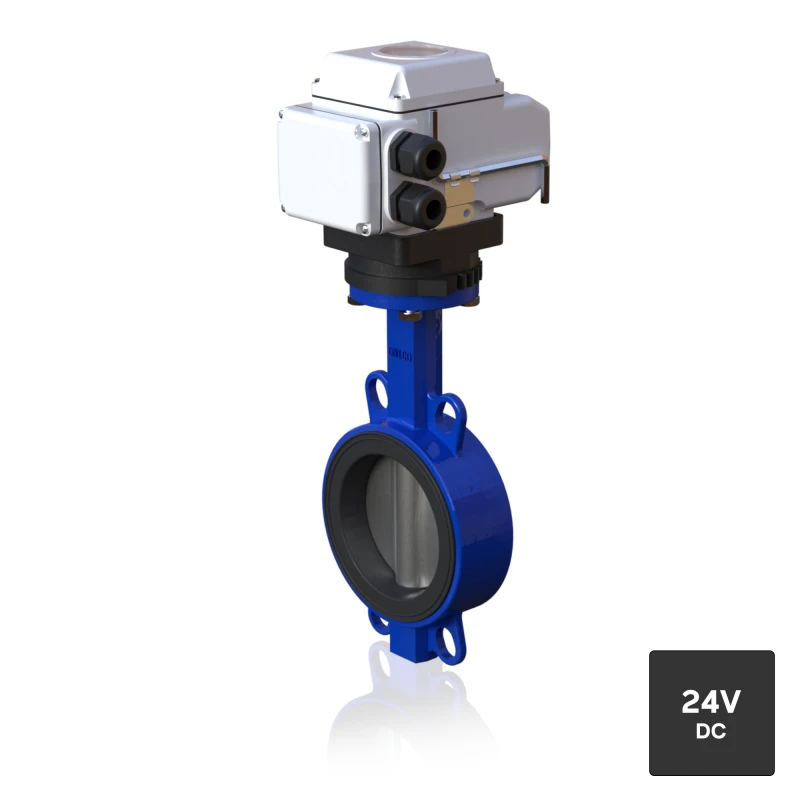

Butterfly valve WAFER cast iron DN40-300 PN16 Electric actuator AE 24V DC

Body/Disc/Seal GGG40/1.4408/ FKM, electric actuator AE 24V DC, torque 50-600 Nm positioning time 25-45 sec. 90°

The automation was based on a medium pressure of 16 bar.

Type

Butterfly valve

Body material

Spheroid ductile iron

Nominal size

Connection end

WAFER

Design

1-piece

Construction

2-way

Sealing material

FKM

Actuation mode

Electrically

Technical data sheet (PDF) WESA Operating Instructions Electric Actuators AE04-19 (PDF) Operating instructions for butterfly valves type WAFER / LUG (PDF)

Selection:

Selection

AE075120-08 - Butterfly valve WAFER cast iron DN40 PN16 Electric actuator AE07 24V DC
AE075120-09 - Butterfly valve WAFER cast iron DN50 PN16 Electric actuator AE07 24V DC
AE075120-10 - Butterfly valve WAFER cast iron DN65 PN16 Electric actuator AE07 24V DC
AE075120-11 - Butterfly valve WAFER cast iron DN80 PN16 Electric actuator AE07 24V DC
AE105120-12 - Butterfly valve WAFER cast iron DN100 PN16 Electric actuator AE10 24V DC
AE105120-13 - Butterfly valve WAFER cast iron DN125 PN16 Electric actuator AE10 24V DC
AE125120-14 - Butterfly valve WAFER cast iron DN150 PN16 Electric actuator AE12 24V DC
AE125120-15 - Butterfly valve WAFER cast iron DN200 PN16 Electric actuator AE12 24V DC
AE145120-16 - Butterfly valve WAFER cast iron DN250 PN16 Electric actuator AE14 24V DC
AE165120-17 - Butterfly valve WAFER cast iron DN300 PN16 Electric actuator AE16 24V DC
