Articlenumber: 1545-45

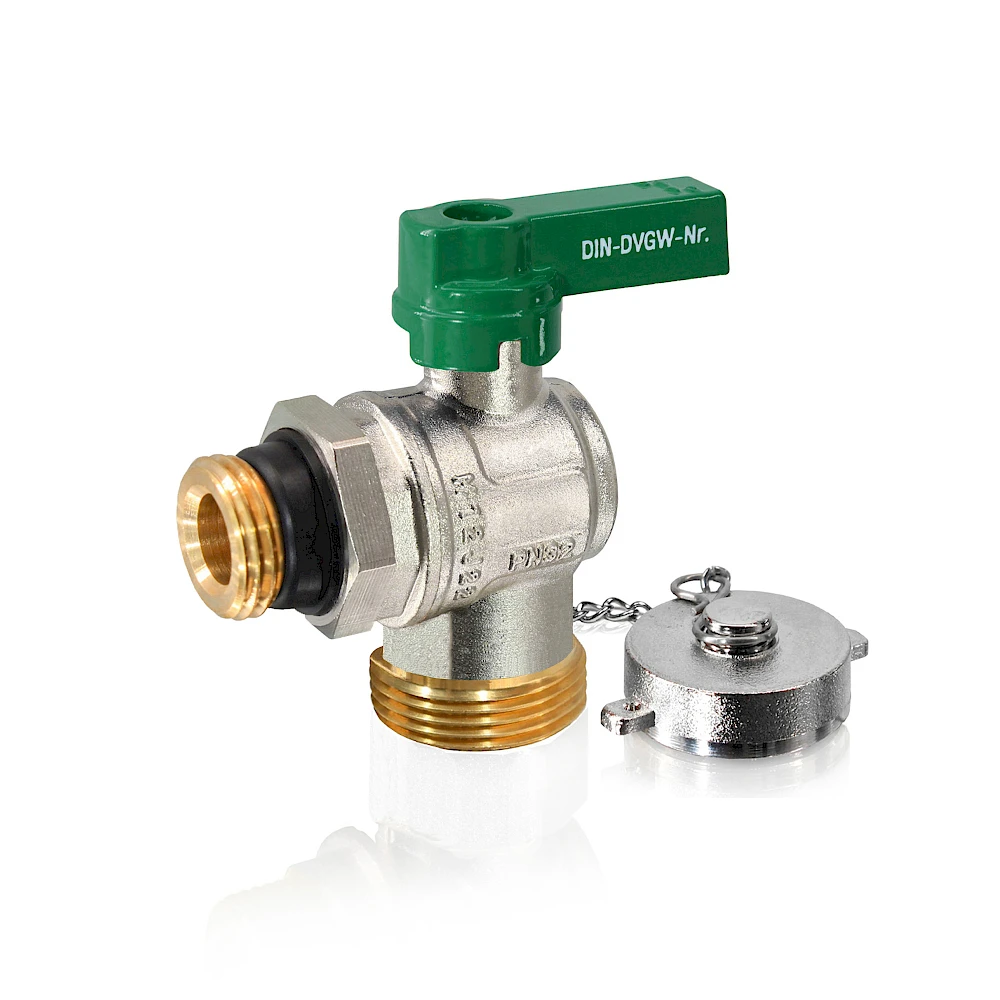

BFD angle ball valve brass DVGW drinking water 1/2" MA x 3/4" MA PN32/10

Body/Ball/Seal CW510L/CW510L/ PTFE/EPDM, butterfly handle aluminum green coated, self-sealing, with cap, chain



NOTE: Available from approximately June 2026!

Type

Body material

Nominal size

Connection end

Design

Construction

Sealing material

Actuation mode

Approval

Technical data sheet (PDF) General installation and operating instructions for WESA ball valves (PDF)
