Articlenumber: AE0919

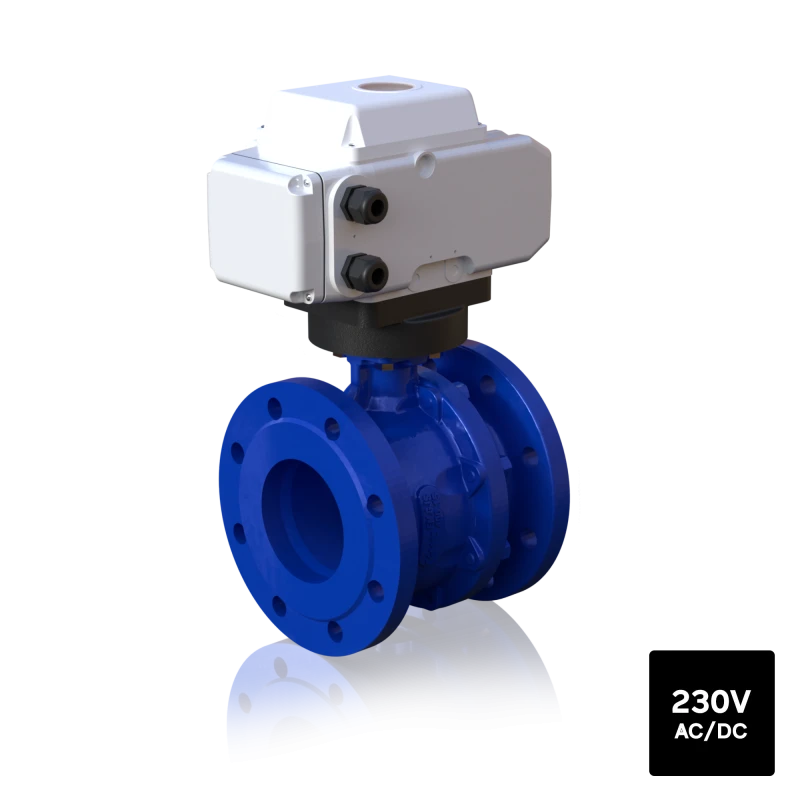

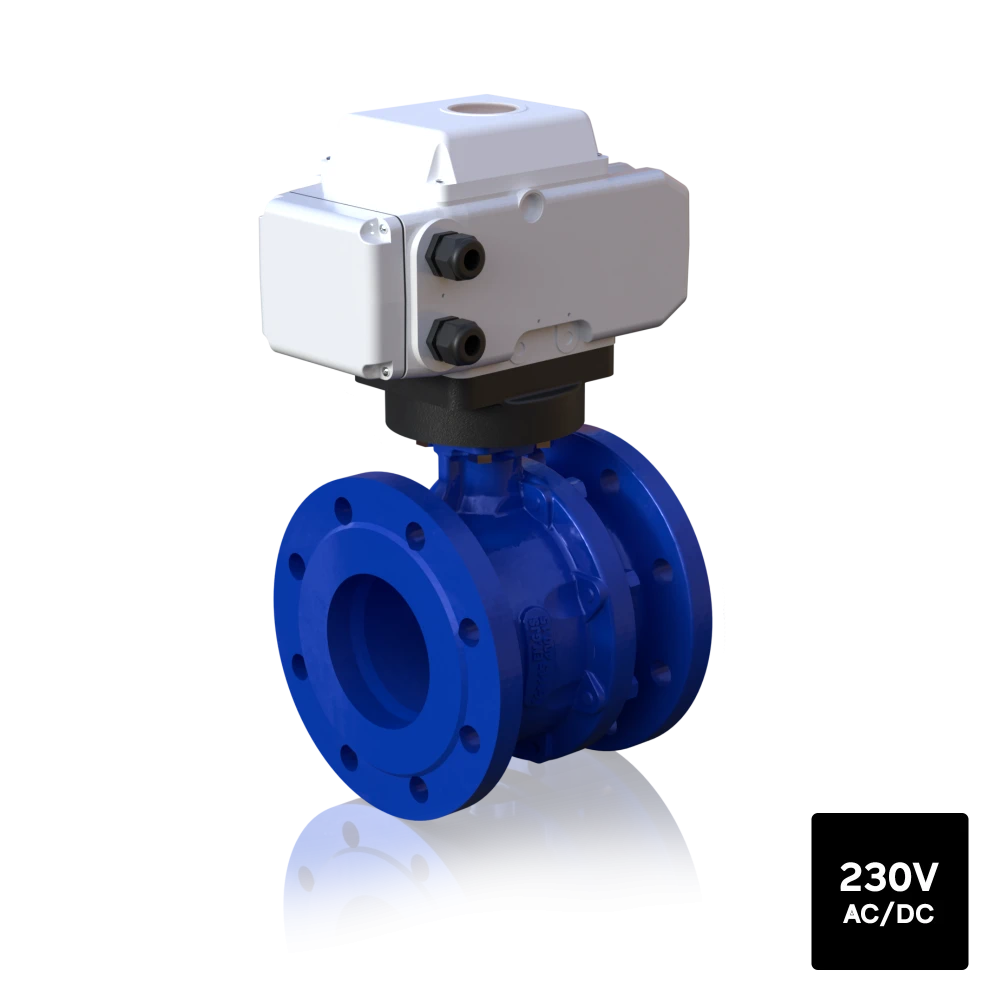

Flange ball valve spheroid ductile iron GGG40 DVGW Gas DN20-150 PN16 Electric actuator AE 230V AC

Body/Ball/Seal GGG40/CW614N/ PTFE/NBR, electric actuator AE 230V AC, torque 50-400 Nm positioning time 25-30 sec. 90°

Type

Ball valve

Body material

Spheroid ductile iron

Nominal size

Connection end

Flange

Design

2-part

Construction

2-way

Sealing material

Actuation mode

Electrically

Approval

DVGW Gas

Technical data sheet (PDF) WESA Operating Instructions Electric Actuators AE04-19 (PDF)

Selection:

Selection

AE060919-05 - Flange ball valve spheroid ductile iron GGG40 DVGW Gas DN20 PN16 Electric actuator AE06 230V AC
AE060919-06 - Flange ball valve spheroid ductile iron GGG40 DVGW Gas DN25 PN16 Electric actuator AE06 230V AC
AE060919-07 - Flange ball valve spheroid ductile iron GGG40 DVGW Gas DN32 PN16 Electric actuator AE06 230V AC
AE060919-08 - Flange ball valve spheroid ductile iron GGG40 DVGW Gas DN40 PN16 Electric actuator AE06 230V AC
AE060919-09 - Flange ball valve spheroid ductile iron GGG40 DVGW Gas DN50 PN16 Electric actuator AE06 230V AC
AE090919-10 - Flange ball valve spheroid ductile iron GGG40 DVGW Gas DN65 PN16 Electric actuator AE09 230V AC
AE110919-11 - Flange ball valve spheroid ductile iron GGG40 DVGW Gas DN80 PN16 Electric actuator AE11 230V AC
AE110919-12 - Flange ball valve spheroid ductile iron GGG40 DVGW Gas DN100 PN16 Electric actuator AE11 230V AC
AE130919-13 - Flange ball valve spheroid ductile iron GGG40 DVGW Gas DN125 PN16 Electric actuator AE13 230V AC
AE130919-14 - Flange ball valve spheroid ductile iron GGG40 DVGW Gas DN150 PN16 Electric actuator AE13 230V AC
