Articlenumber: 930-12

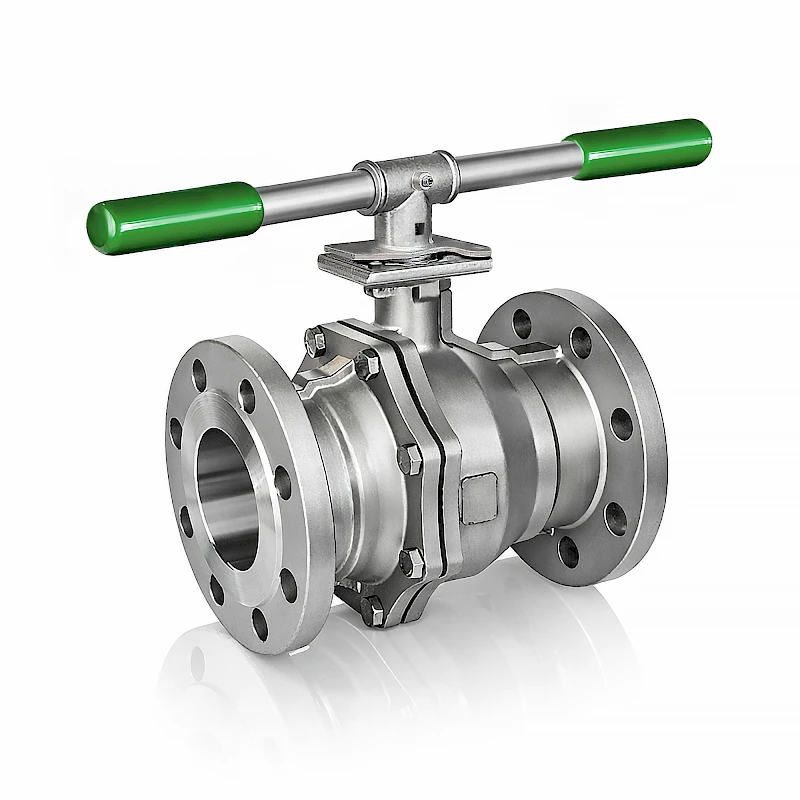

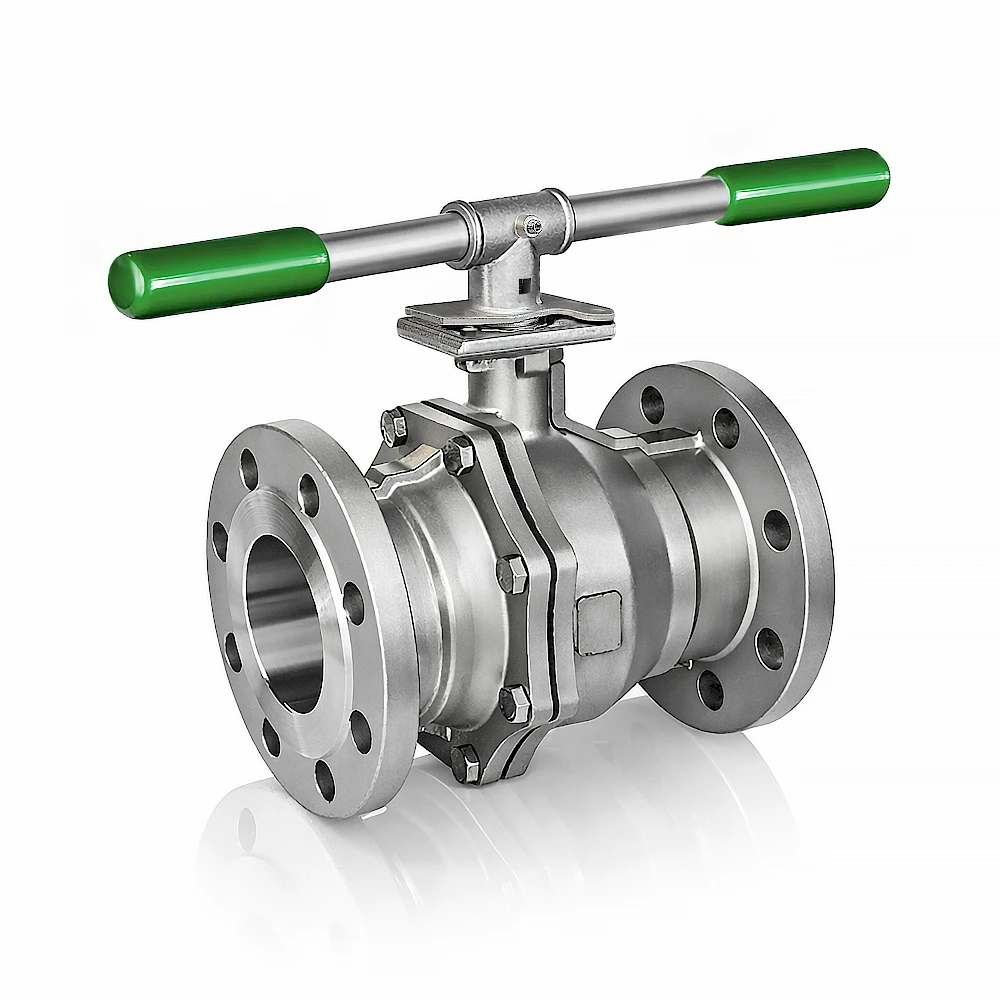

Flange ball valve stainless steel DVGW drinking water DN100 PN10/16

Body/Ball/Seal 1.4408/1.4401/ PTFE/EPDM, pipe lever steel green plastic sleeve, TW DIN-DVGW EN 13828/W570-1 1074-1/2, ÜA-TW ÖNORM EN 16421/B5014-1, full bore, Ball with flushing bore, SIL, F2F dimension acc. to EN 558-1 Series 27

Type

Body material

Nominal size

Connection end

Design

Construction

Sealing material

Actuation mode

Approval

3D-Model (STP) 3D-Ansicht
Technical data sheet (PDF) DIN-DVGW type examination certificate 1074 (PDF) DIN-DVGW type examination certificate 13828 (PDF) General installation and operating instructions for WESA ball valves (PDF)
Selection:
Selection
