Articlenumber: 86110001

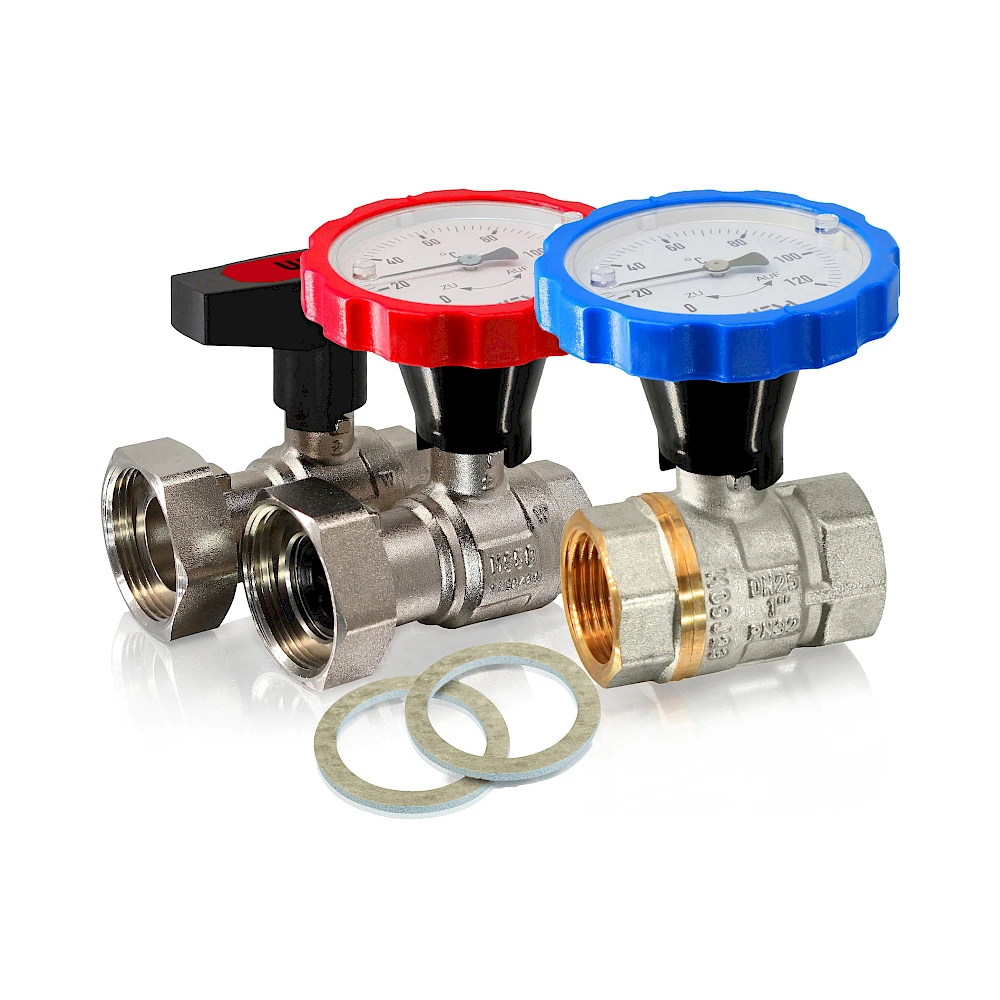

Ball valve set for pump assembly 1 1/4" with thermometer ball valve

Thermometer pump ball valve with gravity brake, pump ball valve T-handle, incl. union nut + sealing

Type

Body material

Nominal size

Connection end

Design

Construction

Sealing material

Actuation mode

3D-Model (STP) 3D-Ansicht Technical data sheet (PDF) General installation and operating instructions for ball valves (PDF)

Matching accessories

Articlenumber: 690-07

Thermometer ball valve brass 1 1/4" FE/FE PN25

Body/Ball/Seal CW617N/CW614N/PTFE/FKM, Thermometer handle zinc die-cast interchangeable blue/red, full bore

Articlenumber: 1083

Pump ball valve brass 1 1/4"x1 1/4" FE/FL PN20

Body/Ball/Seal CW614N/CW614N/PTFE/FKM, T-handle black nylon with ABS clip (red-blue), without gravity brake, full bore

Articlenumber: 98000680-79

Special screw connection 2x UN 1 1/4" x 2"

Without seal for pump ball valve

Articlenumber: 97000077-09-T10

Seal asbestos-free Drinking water approval 2"

55,0 x 33 x 2mm, for UN and MA 2"

Articlenumber: 690-07

Thermometer ball valve brass 1 1/4" FE/FE PN25

Body/Ball/Seal CW617N/CW614N/PTFE/FKM, Thermometer handle zinc die-cast interchangeable blue/red, full bore

Articlenumber: 1083

Pump ball valve brass 1 1/4"x1 1/4" FE/FL PN20

Body/Ball/Seal CW614N/CW614N/PTFE/FKM, T-handle black nylon with ABS clip (red-blue), without gravity brake, full bore

Articlenumber: 98000680-79

Special screw connection 2x UN 1 1/4" x 2"

Without seal for pump ball valve

Articlenumber: 97000077-09-T10

Seal asbestos-free Drinking water approval 2"

55,0 x 33 x 2mm, for UN and MA 2"
