Item: EL01

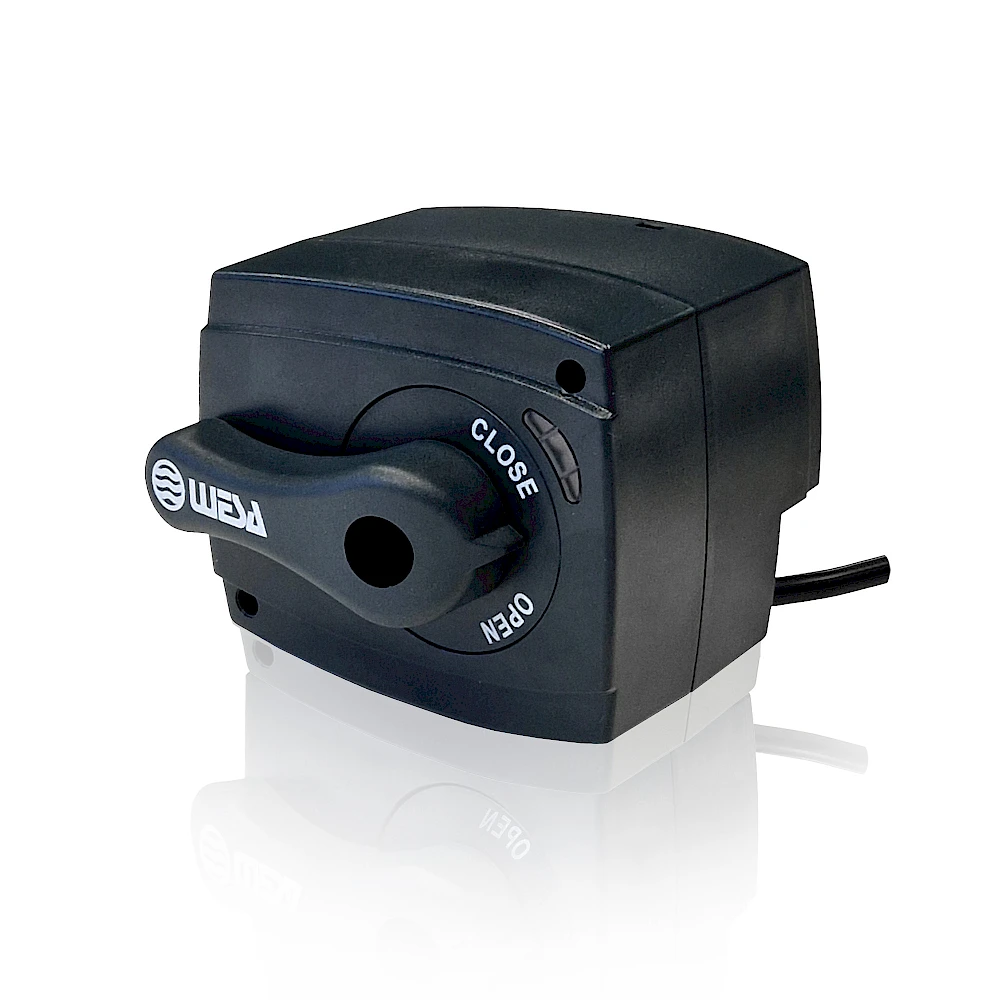

Electric actuator EL01 230V AC

Torque 15 Nm Setting time 60 sec. 90°, ISO mount 5211, F03/F05, square 9mm, housing: polycarbonate dark grey

Item available from June 1, 2025!

Type

Actuator

Body material

Plastic

Actuation mode

Electrically

Technical data sheet (PDF) 3D-Model (STP)

Further products

Item: AE01

Electric actuator AE01 230V AC

Body aluminum alloy coated, torque 18 Nm operating time 15 sec. 90°, 2 limit switches for OPEN/CLOSE feedback, ISO flange F03/F04/F05, star 9/11

Item: AE02

Electric actuator AE02 24V DC

Body aluminum alloy coated, torque 18 Nm operating time 10 sec. 90°, 2 limit switches for OPEN/CLOSE feedback, ISO flange F03/F04/F05, star 9/11

Item: AE03

Electric actuator AE03 24V AC

Body aluminium alloy coated, torque 18 Nm actuating time 15 sec. 90°, 2 limit switches for OPEN/CLOSE feedback, 2x for rotation, ISO flange F03/F04/F05, star 9/11, SIL

Item: AE04-AE19

Electric actuator AE04-AE19 230V AC

Body: aluminum alloy coated, torque 30-2,500 Nm actuating time 12-75 sec. 90°, 2 limit switches for OPEN/CLOSE feedback, ISO flange F03-12, star 9-36, SIL

Item: AE05-AE16

Electric actuator AE05-AE16 24V DC

Body aluminum alloy coated, torque 30-600 Nm actuating time 12-45 sec. 90°, 2 limit switches for OPEN/CLOSE feedback, 2x for rotation, ISO flange F03-F12, star 9-27, SIL

Item: EK01-EK04

Electric actuator EK01-EK04 100-240V AC

VALPES ER Premier 1-wire control, torque 20-100 Nm positioning time 13-25 sec. 90°, 4 adjustable limit switches

Item: EK05-EK08

Electric actuator EK05-EK08 24V AC/DC

VALPES ER Premier 1-wire control, torque 20-100 Nm positioning time 13-25 sec. 90°, 4 adjustable limit switches

Item: ER01-ER05

Electric actuator ER01-ER05 100-240V AC

VALPES ER Plus 2-wire control, torque 10-100 Nm positioning time 11-23 sec. 90°, 4 adjustable limit switches, 2-wire control

Item: ER11-ER15

Electric drive ER11-ER15 100-240V AC

VALPES ER Plus with battery block, torque 10-100 Nm positioning time 11-23 sec. 90°, 4 adjustable limit switches, with battery block for automatic return in the event of a power failure, operating temperature -10°C to +40°C

Item: ER21-ER24

Electric drive ER21-ER24 100-240V AC

VALPES ER Plus Posi control 4-20 mA, torque 20-100 Nm positioning time 25-119 sec. 90°, 4 adjustable limit switches, control via Posi 4-20 mA / 0-10 V

Item: ER06-ER10

Electric actuator ER06-ER10 15-30V AC

VALPES ER Plus 2-wire control, torque 10-100 Nm positioning time 11-23 sec. 90°, 4 adjustable limit switches, 2-wire control

Item: ER16-ER20

Electric actuator ER16-ER20 15-30V AC

VALPES ER Plus with rechargeable battery block, torque 10-100 Nm positioning time 11-23 sec. 90°, 4 adjustable limit switches, with rechargeable battery block for automatic return in the event of a power failure, operating temperature with rechargeable battery block -10°C to +40°C
